Model Context Protocol

Foyer includes an optional, lightweight Model Context Protocol endpoint that can help AI assistants inspect, validate, and, if you explicitly allow it, update Foyer configuration files.

This endpoint is disabled by default. Do not expose it to an untrusted network unless you put Foyer behind authentication, TLS, and a reverse proxy that validates Host headers.

Once enabled you can use the endpoint to help an assistant understand your current Foyer configuration, add new services or widgets, and get links to relevant documentation. For example, an assistant could add a new media service to your dashboard by appending it to services.yaml via the MCP endpoint instead of you having to manually edit the file. For example, you can ask an assistant to add a new service entry for Paperless-ngx:

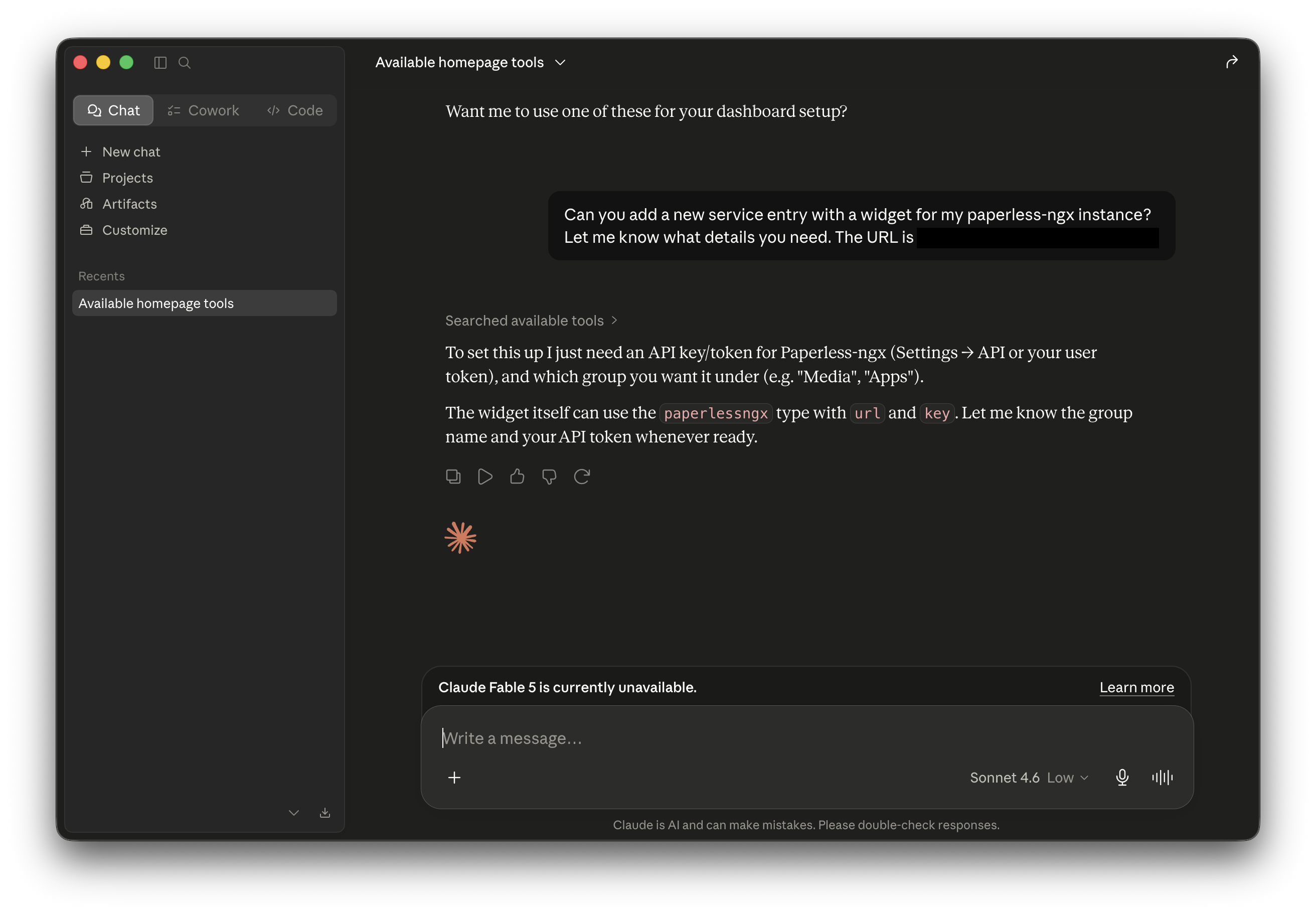

Example of Claude Request

Enable the MCP endpoint

Set the following environment variable and restart Foyer:

FOYER_MCP_ENABLED: "true"

The endpoint is available at:

http://your-foyer-instance/api/mcp

If Foyer is built with a base path, the endpoint sits under it, e.g. http://your-foyer-instance/foyer/api/mcp.

Authentication

The MCP endpoint requires authentication. Requests from an authenticated Foyer session are allowed when Foyer auth is enabled with FOYER_AUTH_ENABLED.

For MCP clients that cannot use the browser session, set FOYER_MCP_TOKEN. An MCP token is required when Foyer auth is not enabled. The token grants read access to every configured service credential and, with writes enabled, control of custom.js (which runs in every browser), so it must be at least 32 characters — generate one with openssl rand -base64 32. Foyer refuses MCP requests while a shorter token is configured. Requests can include either of the following headers:

Authorization: Bearer your-token

or:

X-Foyer-MCP-Token: your-token

Example Docker Compose environment block:

environment:
  FOYER_MCP_ENABLED: "true"
  FOYER_AUTH_ENABLED: "true"
  FOYER_MCP_TOKEN: "generate-with-openssl-rand-base64-32"

Connecting Claude Desktop

Claude Desktop can use mcp-remote to communicate with the foyer MCP endpoint in claude_desktop_config.json:

{
  "mcpServers": {
    "foyer": {
      "command": "npx",
      "args": ["-y", "mcp-remote", "http://localhost:3000/api/mcp", "--header", "X-Foyer-MCP-Token: your-token"]
    }
  }
}

The Add custom connector option will not work: remote connectors authenticate with OAuth and cannot supply FOYER_MCP_TOKEN.

Read-only by default

The MCP endpoint exposes tools for reading and validating supported Foyer config files. File writes are disabled unless you opt in with:

FOYER_MCP_ALLOW_WRITE: "true"

When writes are enabled, YAML files are parsed before they are saved so a syntactically invalid YAML document is rejected instead of replacing the current file.

Supported tools

Tool Description
list_config_files Lists supported config files, whether they exist, and links to the related docs.
read_config_file Reads one supported config file from FOYER_CONFIG_DIR.
validate_config_file Validates YAML from a file or supplied content and returns line and column details for syntax errors.
write_config_file Replaces a supported config file when FOYER_MCP_ALLOW_WRITE=true.
add_service Appends a service to a group in services.yaml when FOYER_MCP_ALLOW_WRITE=true.
add_info_widget Appends an information widget to widgets.yaml when FOYER_MCP_ALLOW_WRITE=true.
foyer_docs Returns focused Foyer documentation links for common setup topics.

For example, an assistant can add a service with:

{
  "group": "Media",
  "name": "Plex",
  "service": {
    "href": "https://plex.example.com",
    "icon": "plex.png",
    "description": "Movies and TV",
    "widget": {
      "type": "plex",
      "url": "https://plex.example.com",
      "key": "your-api-key"
    }
  }
}

Or add an info widget with:

{
  "type": "openmeteo",
  "options": {
    "label": "Current",
    "latitude": 36.66,
    "longitude": -117.51,
    "cache": 5
  }
}

Supported resources

The MCP server also exposes config files as MCP resources using this URI format:

foyer://config/services.yaml

Supported files are:

  • settings.yaml
  • services.yaml
  • bookmarks.yaml
  • widgets.yaml
  • docker.yaml
  • kubernetes.yaml
  • proxmox.yaml
  • custom.css
  • custom.js

Example request

curl -s http://localhost:3000/api/mcp \
  -H 'Content-Type: application/json' \
  -H 'Authorization: Bearer your-token' \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/list"}'
